• Resistance to rust and corrosion
  • Long term durability
  • Lubricity
  • Sustainable for even seawater and desert area
  • TAKECOAT® 1000 is a fluorocarbon polymer surface treatment with powerful anti-rusting, anti-corrosion properties. It was created by combining precoating under treatment and fluorocarbon polymer coating technologies to enhance the adhesion of the metal/film interface, and impart anti-rust and anti-corrosion properties despite being thin. Because TAKECOAT® 1000 has a low fastening torque cofficient value, it prevents contact corrosion between different types of metals.

Applicable meterials

All Metals

Applicable size

CW*D*H -> 500mm x 600mm x 200mm

Minimum diameter -> 10mm

Max weight -> 40 kg

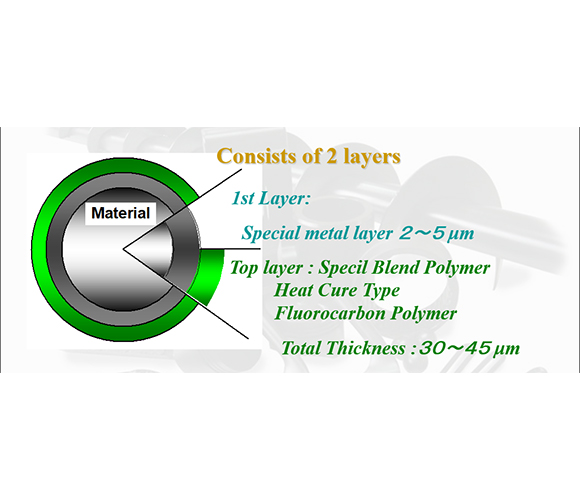

Cross structures of TAKECOAT-1000

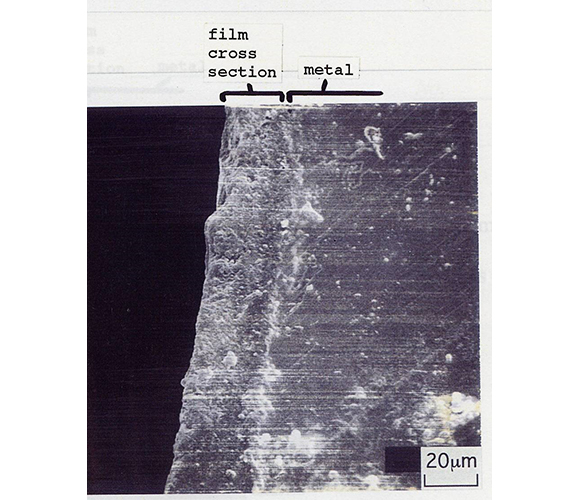

Cross section SEM images

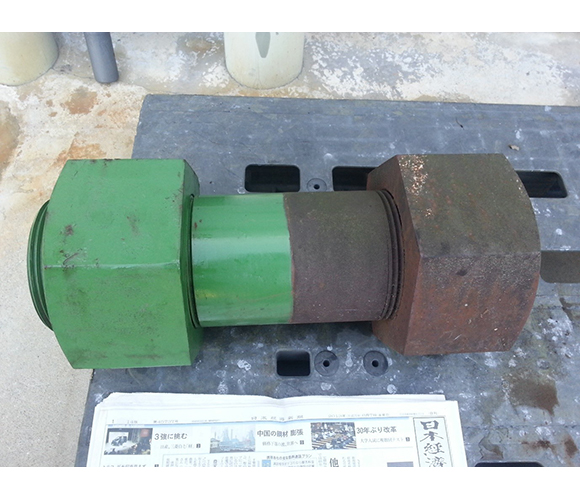

Corrosion resistance (out-door Exposure test)

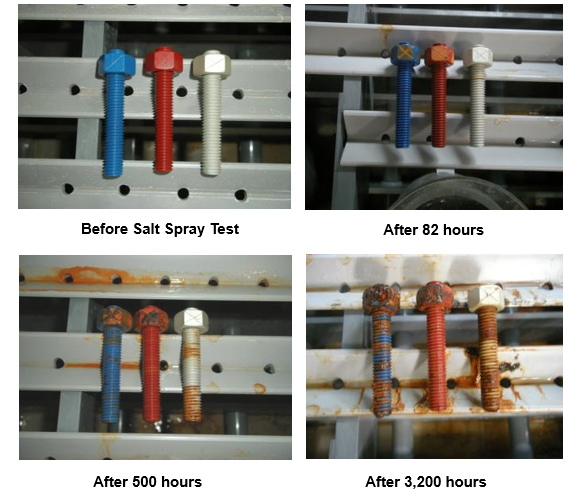

Other PTFE coating.

Outdoor exposure test.

Outdoor exposure test.

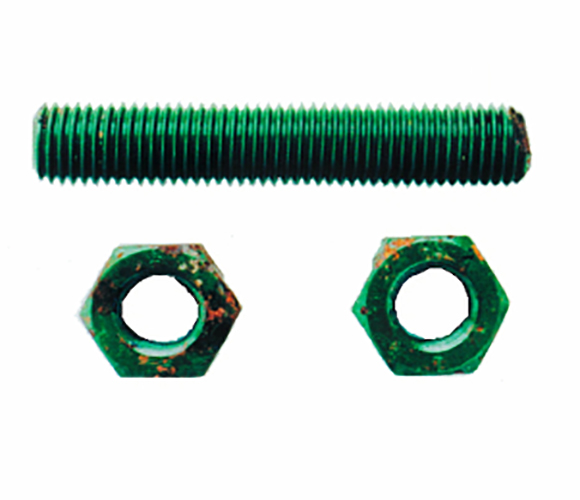

Takecoat-1000 after 6years

Takecoat-1000 after 6years.

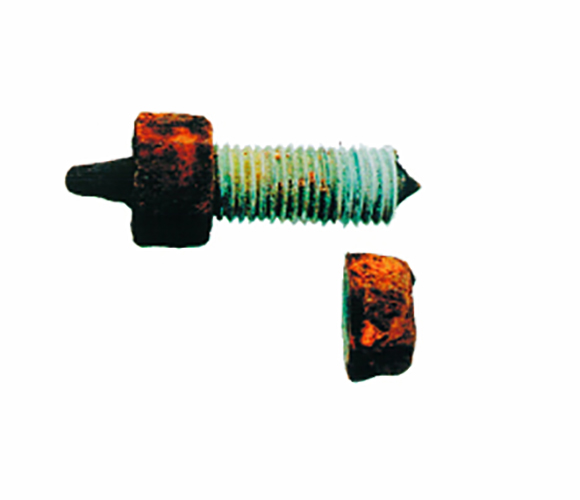

Hot-dip galvanizing after 6years

Hot-dip galvanizing after 6years.

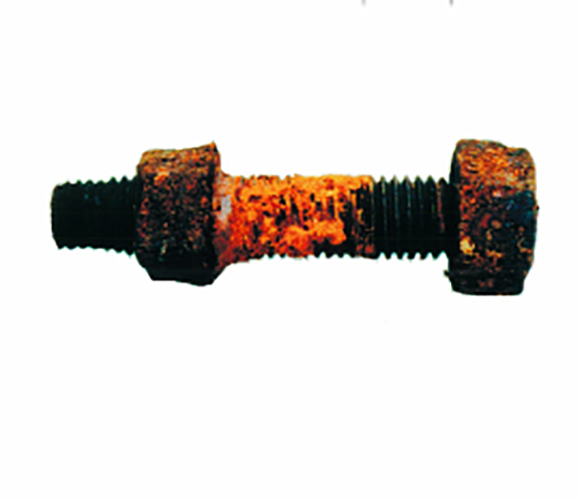

Cadmium plating after 6years.

Cadmium plating after 6years.
